项目基地位于浙江省湖州市德清县莫干山镇甘露茶厂的西侧，该茶厂由业主兄弟二人经营，业主希望通过改建自家老宅后拉动当地采茶产业。

The project is based in the west of Ganlu Tea Factory in Moganshan Town, Deqing County, Huzhou City, Zhejiang Province. Ganlu tea factory is operated by two brothers who want to promote the local tea-picking industry by rebuilding the old house.

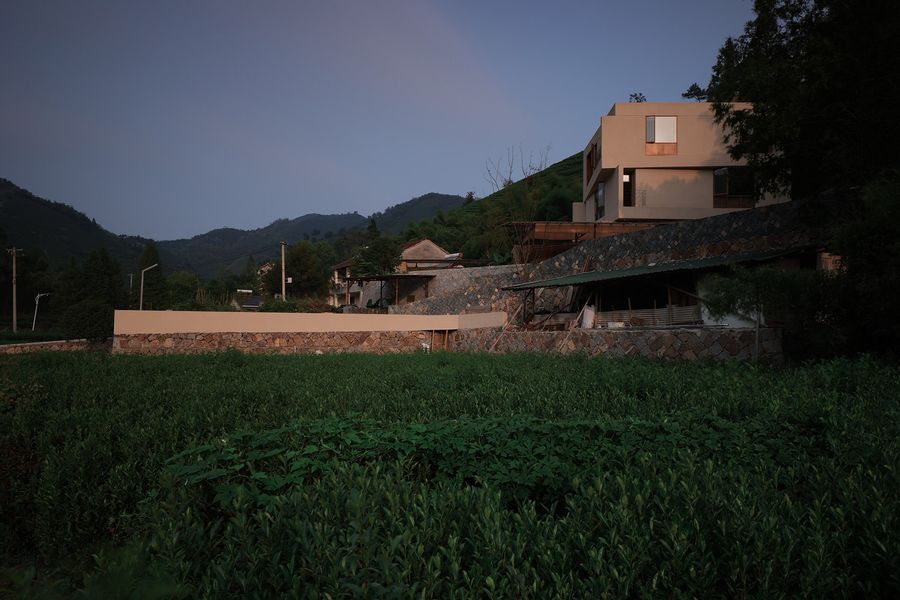

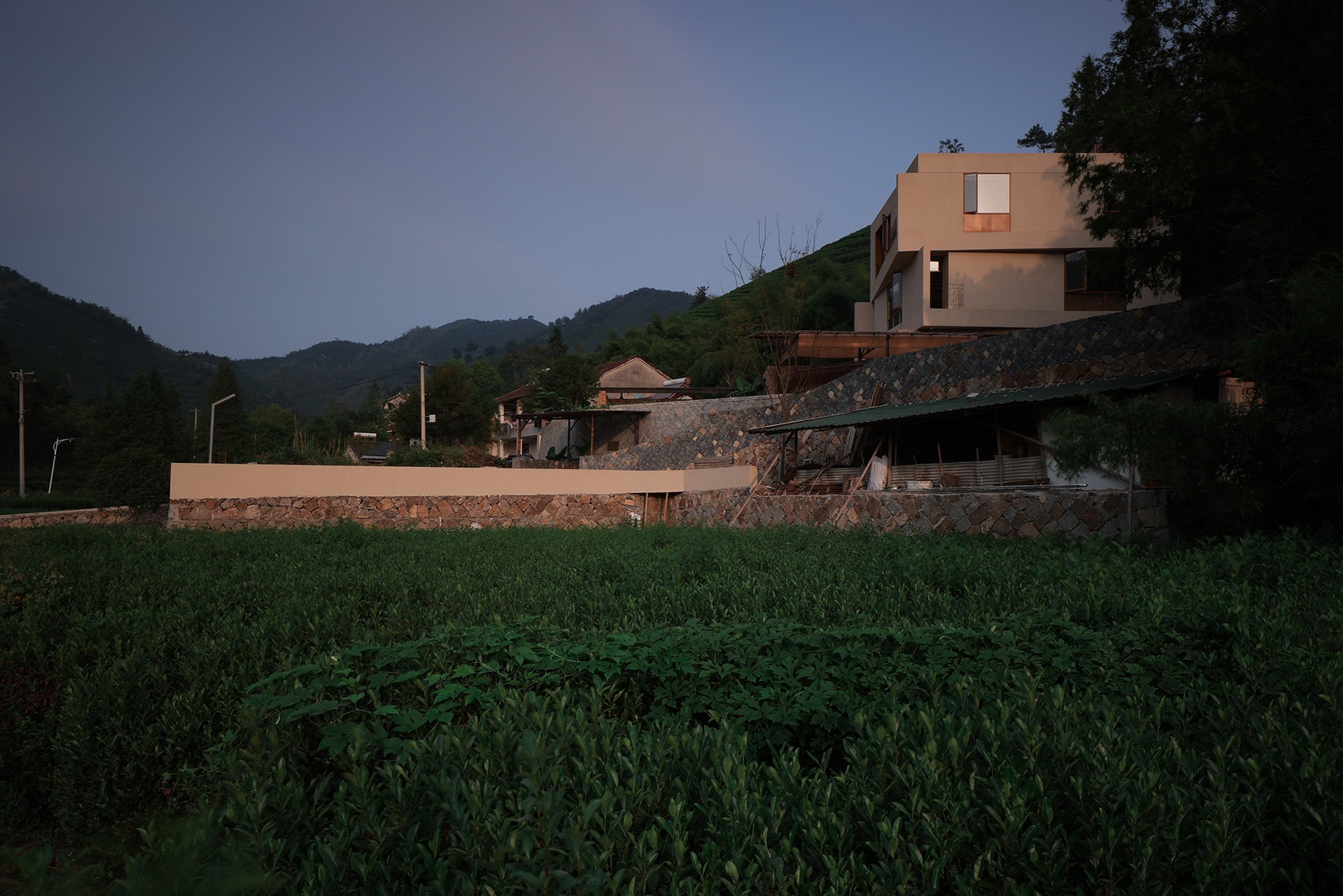

▼建筑远眺，Surroundings © 大川又

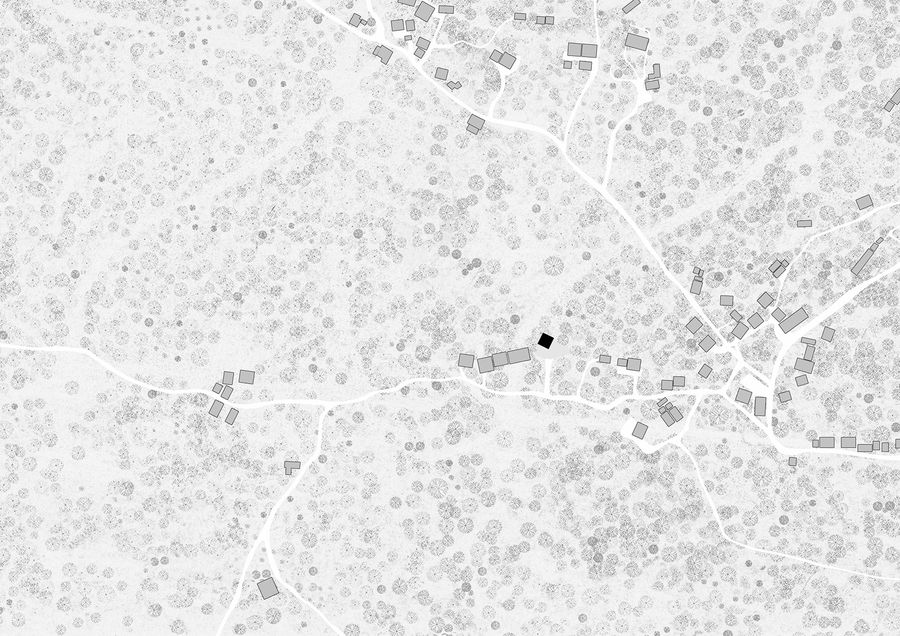

原始老宅北面背靠竹海，东面面朝茶田，前方是开阔的山峦。当我们第一次到访时业主已将老宅完全拆除，并平整了场地。同时由于当地政策限制，新建建筑长宽不得超过12m，高度也不得超过12m，因此建筑以立方体的姿态被孤立在一块空地中。

At the back of the old house, a bamboo forest extends to the north. There’s a tea field in the east and expansive mountains in front. The old house had been demolished and the site had been levelled by the owners when we first arrived. According to the restriction of local policies, the length, width and height of new buildings must be less than 12m, therefore, the new house is shaped like a cubic, isolated in a vacant lot.

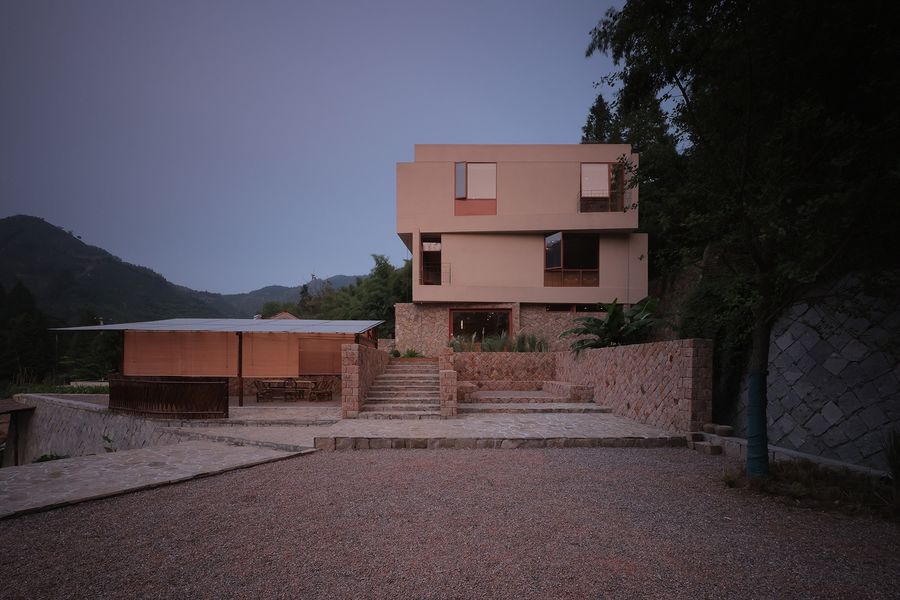

▼建筑外观，Exterior view © 大川又

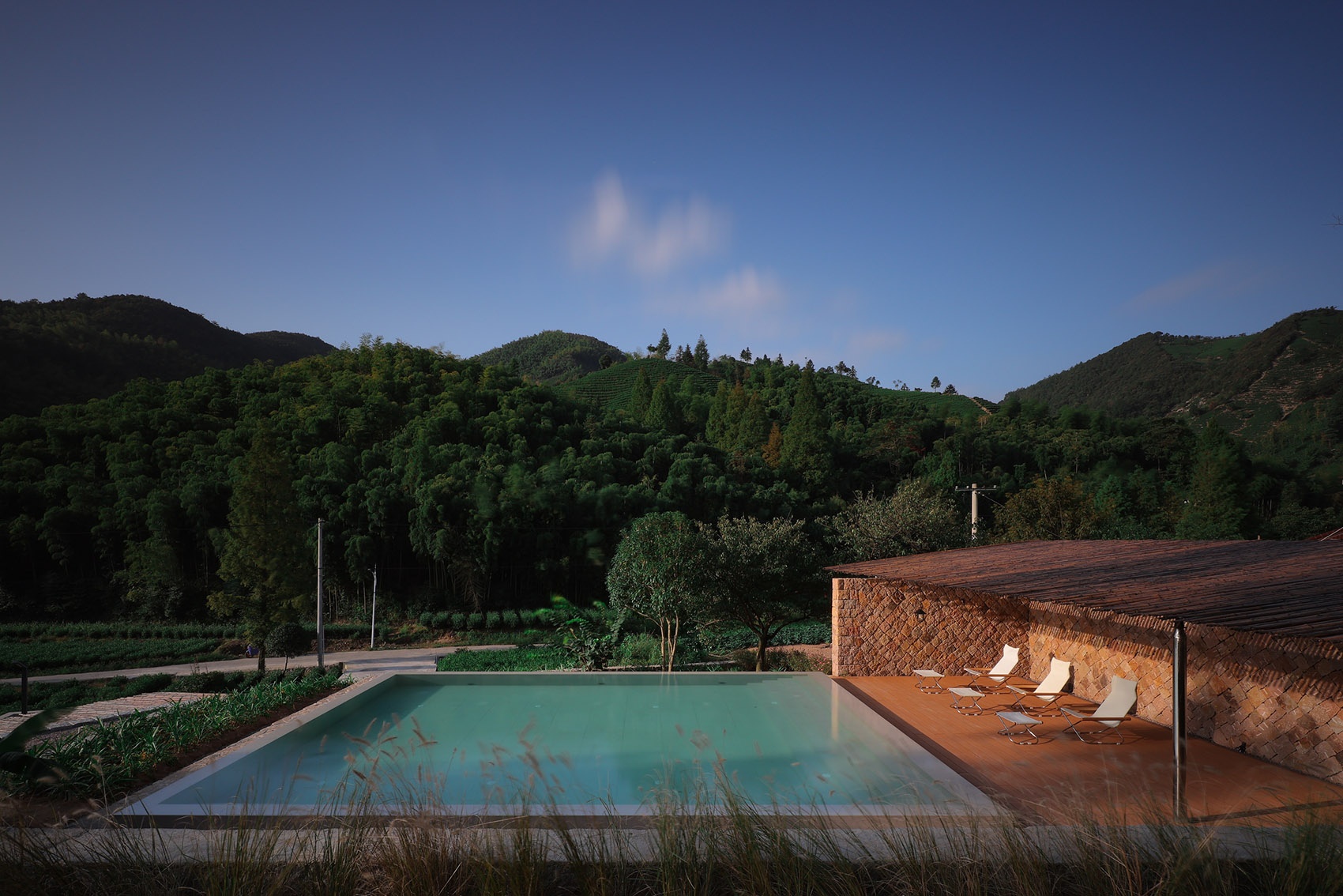

▼泳池露台，Pool terrace © 大川又

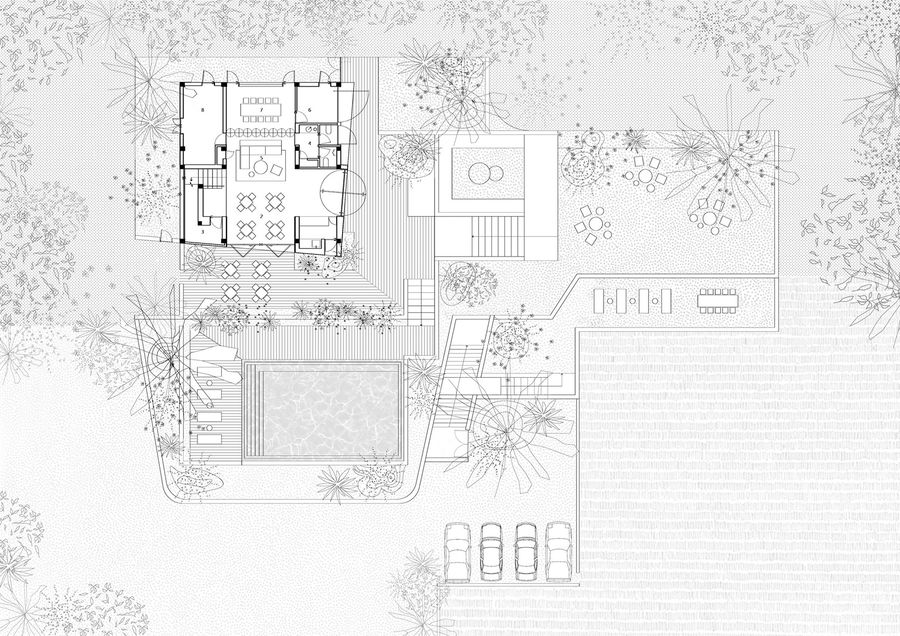

场地四周拥有丰富多样的景色和植物，因此我们希望将其进行重新梳理，从多个角度觅寻周围的水杉、茶田、竹林和远处的山峦，形成了视觉对景。同时通过建筑内部的路径动线设计，有节奏地将每个景色排列到每个窗景上，如同一幅展开的山水长卷。

The site is surrounded by different scenery and a variety of plants, so we wanted to re-plan it to produce diverse visual effects from different angles by making use of the surrounding metasequoia, tea fields, bamboo forest and distant mountains. Meanwhile, we’d like to redesign the inside paths of the building to make the different scenes properly appear in each window, just like an unfolding landscape when looking at it overall.

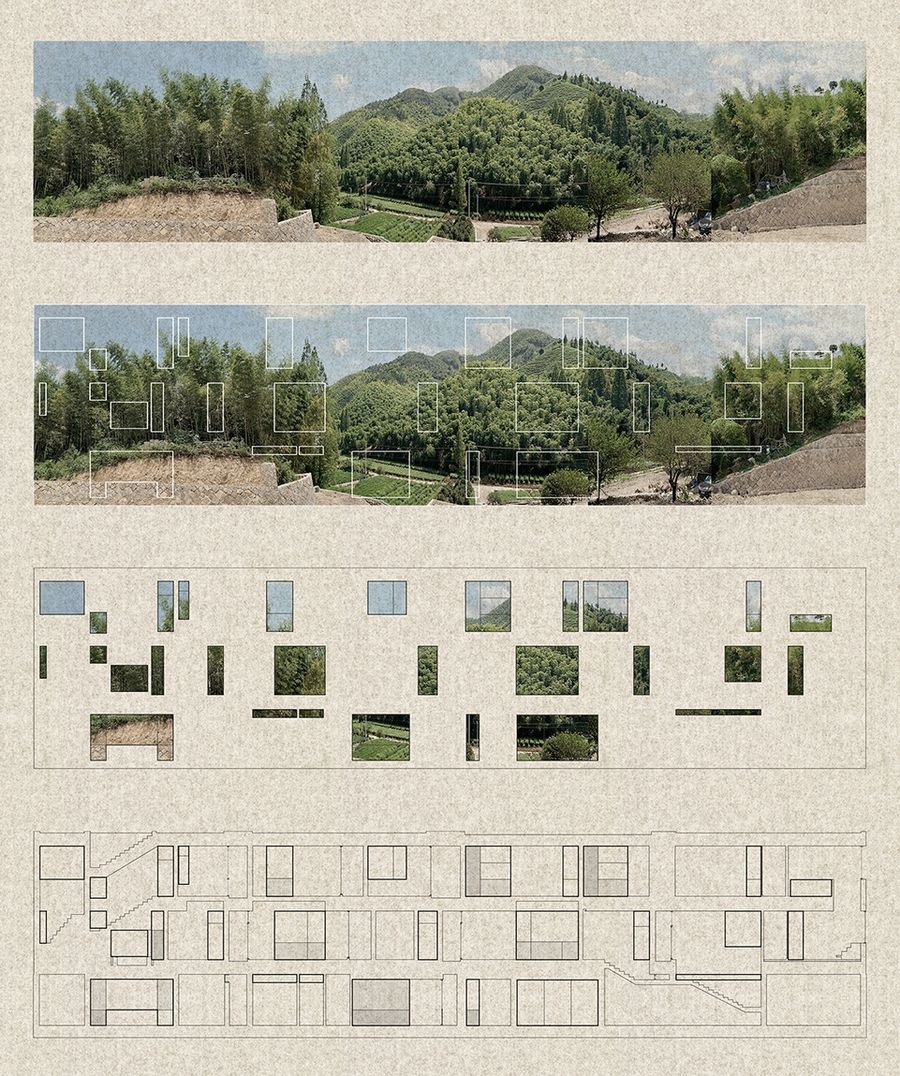

▼分析图，Analysis © 实在建筑

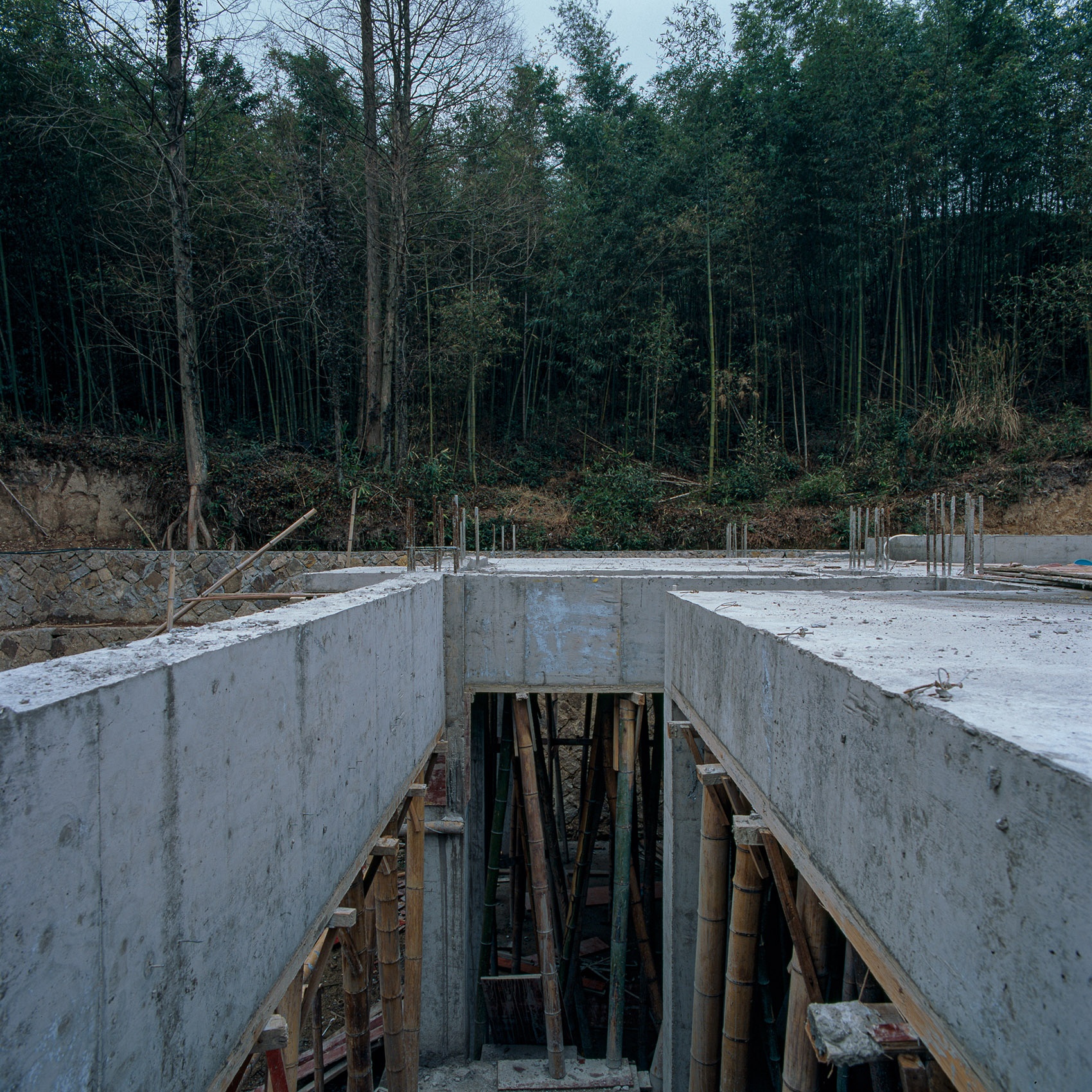

▼当地用竹子支模，Using local bamboo to support the mold © 大川又

我们将悬挑的阳台进行延伸，获得视觉上扭动的错觉，消解原本由于建造条件限制所形成的正方体，降低了土建的施工难度和造价。

We extended the overhanging balcony to have an illusion of visual twisting, changing the rigid cubic shape restricted by construction conditions, moreover, construction difficulties and the cost has been reduced.

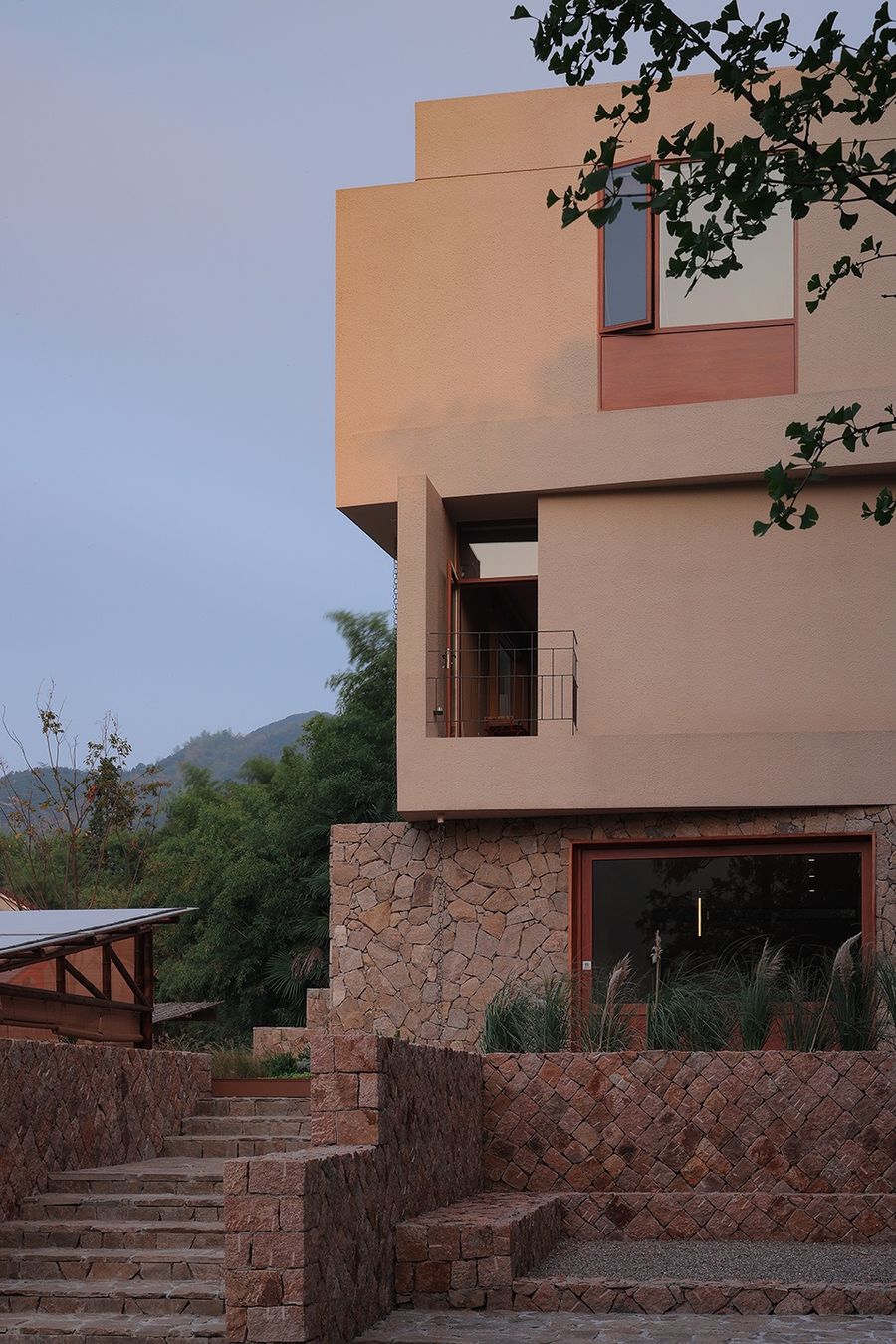

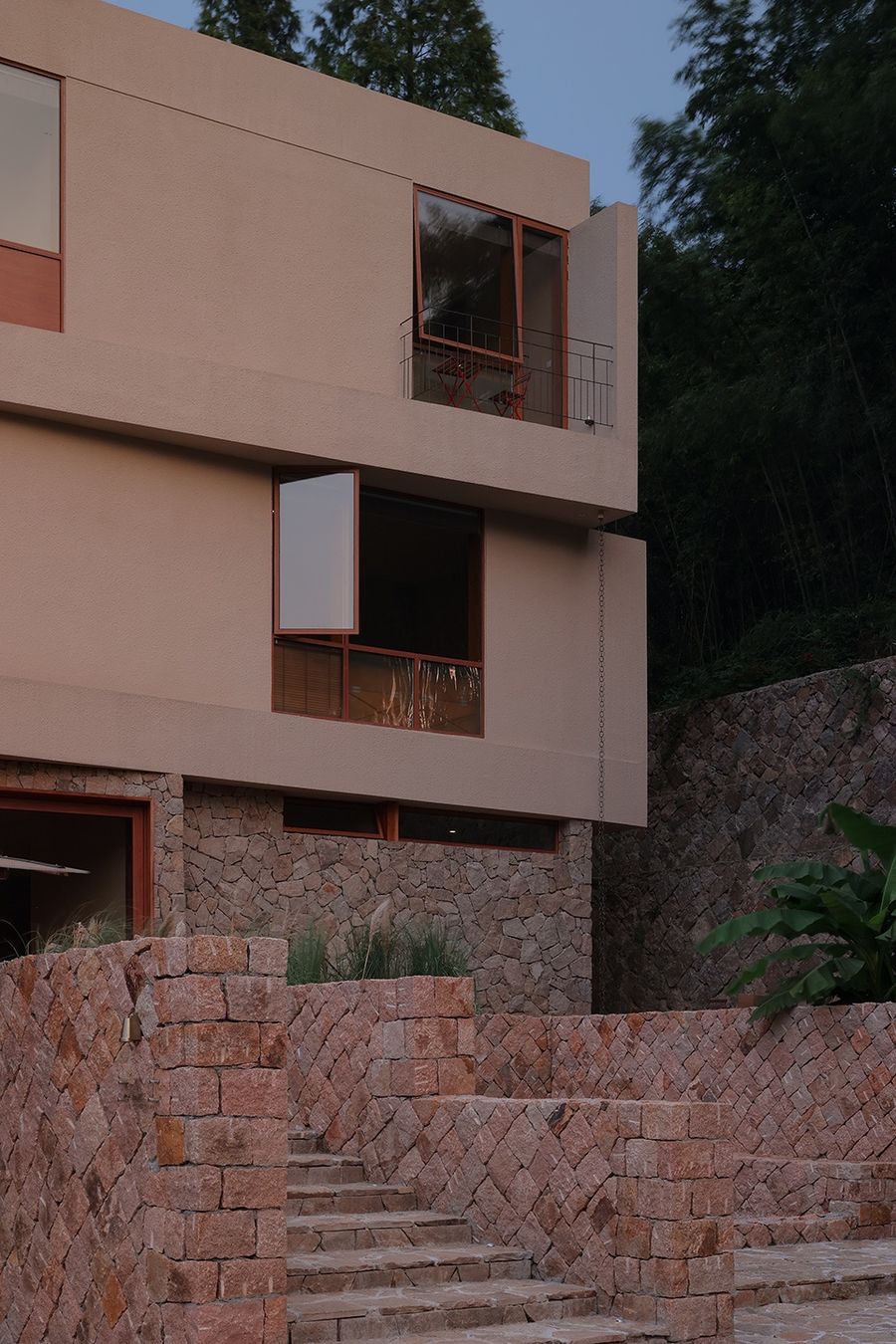

▼外观局部，Exterior partial view © 实在建筑

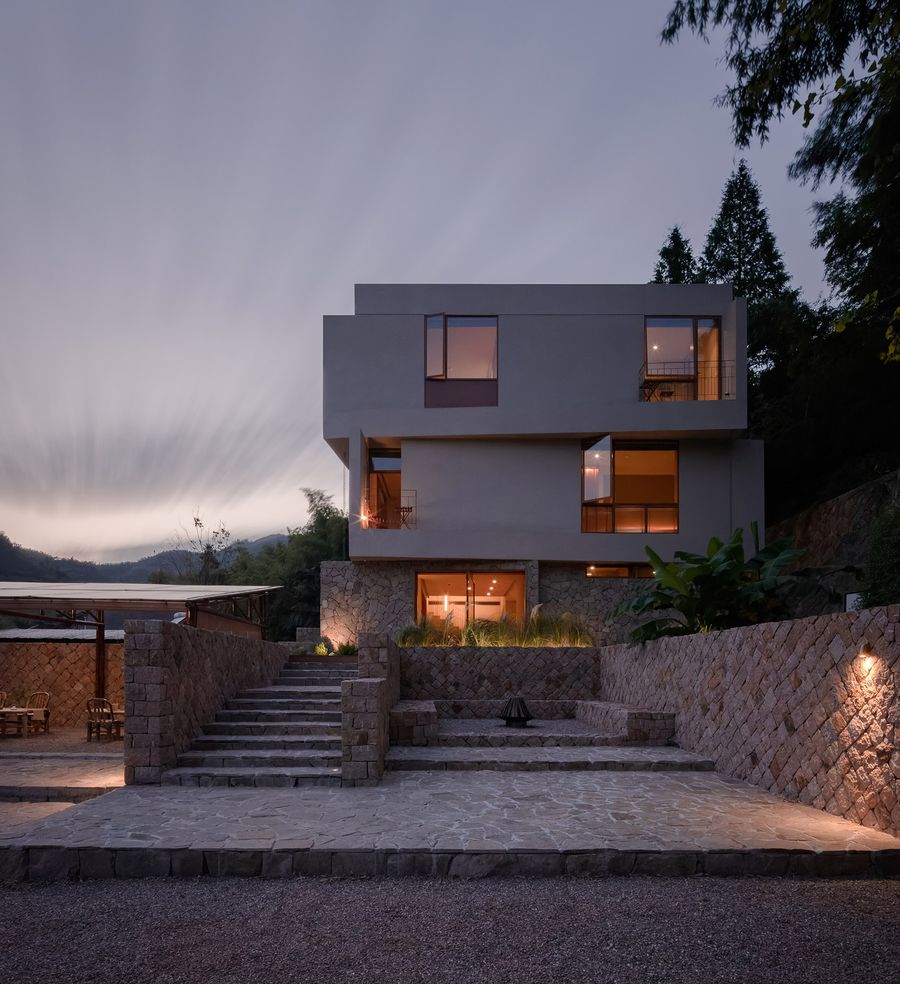

▼建筑东立面，East facade © 大川又

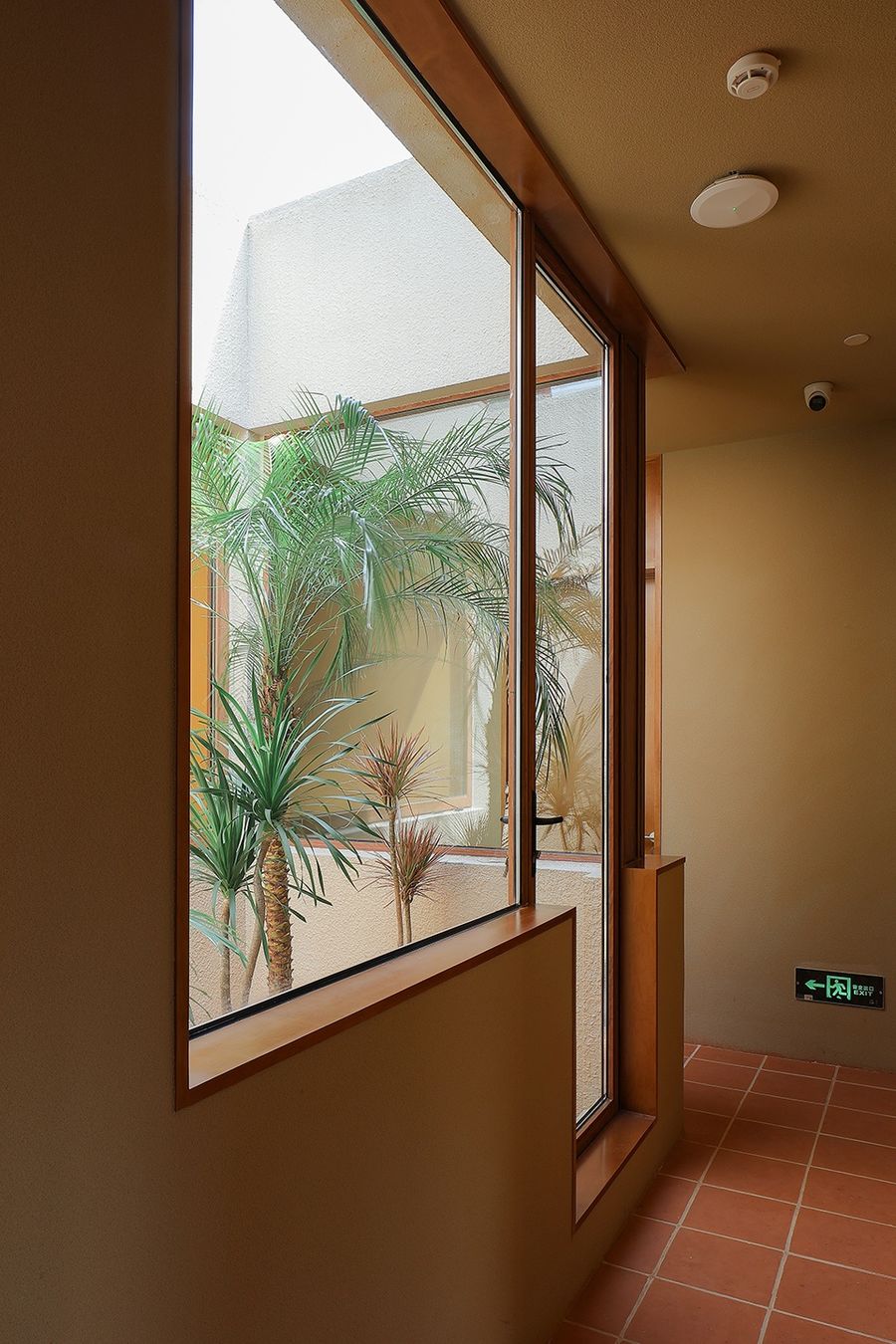

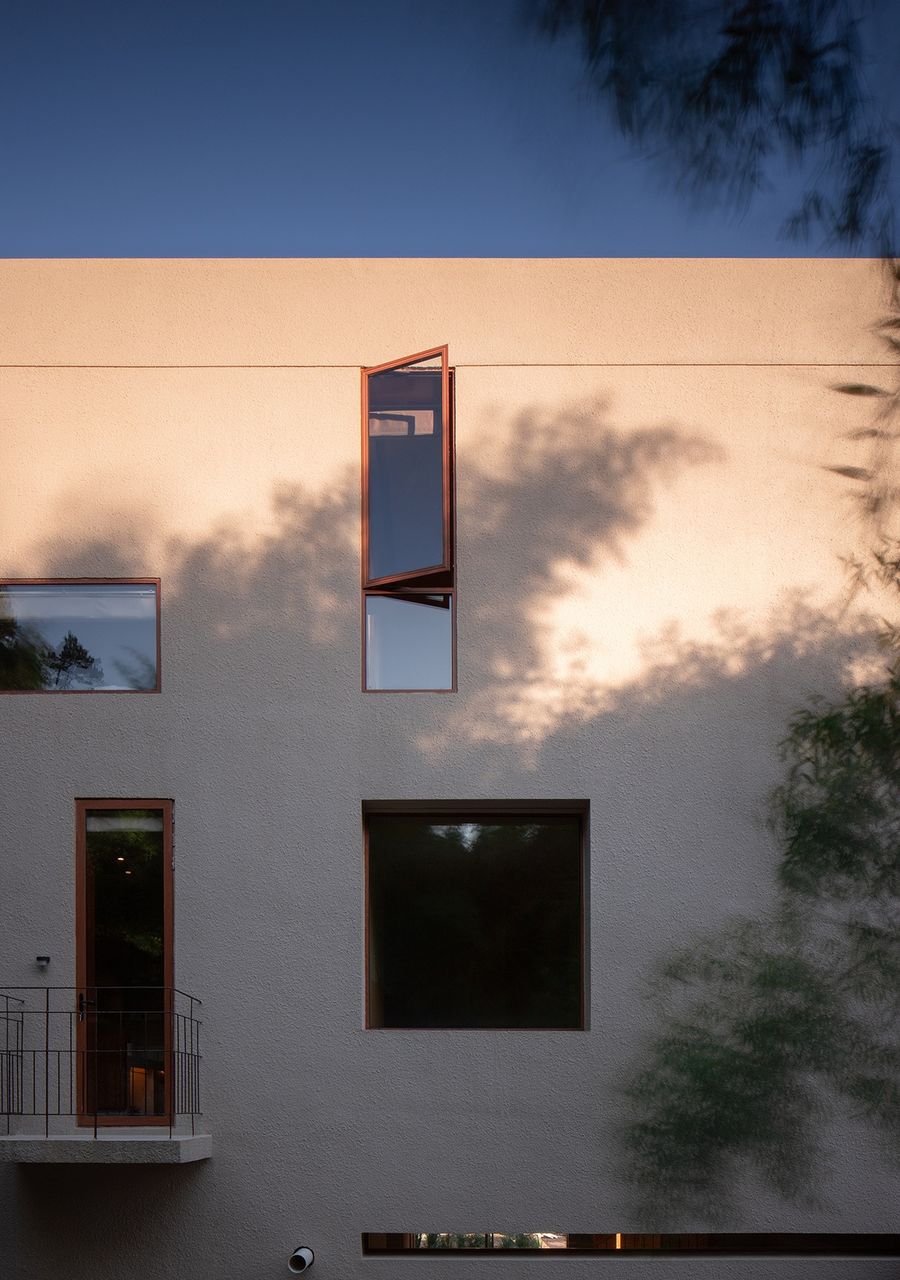

窗户设置了不同的开启方式，赋予了其不同的实际功能。

The windows are set to open in different ways, giving them various practical functions.

▼建筑西立面，West facade © 大川又

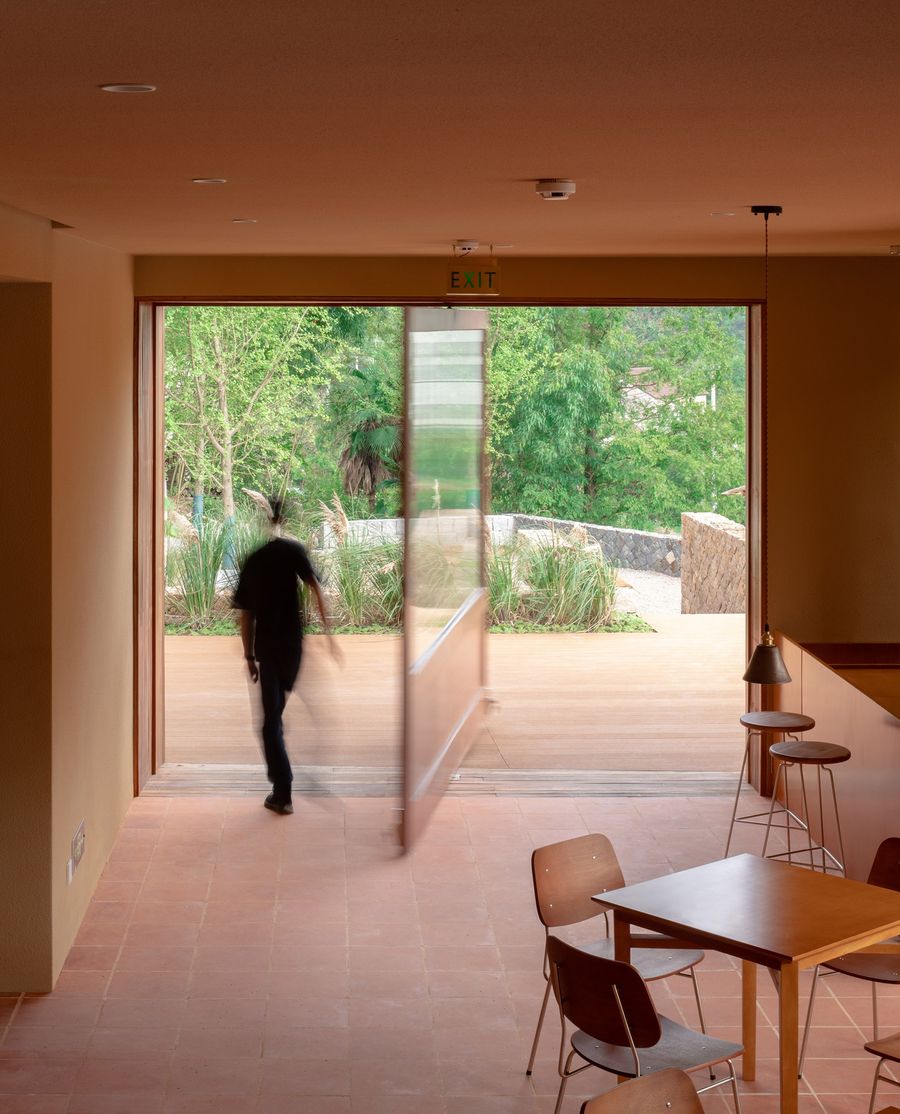

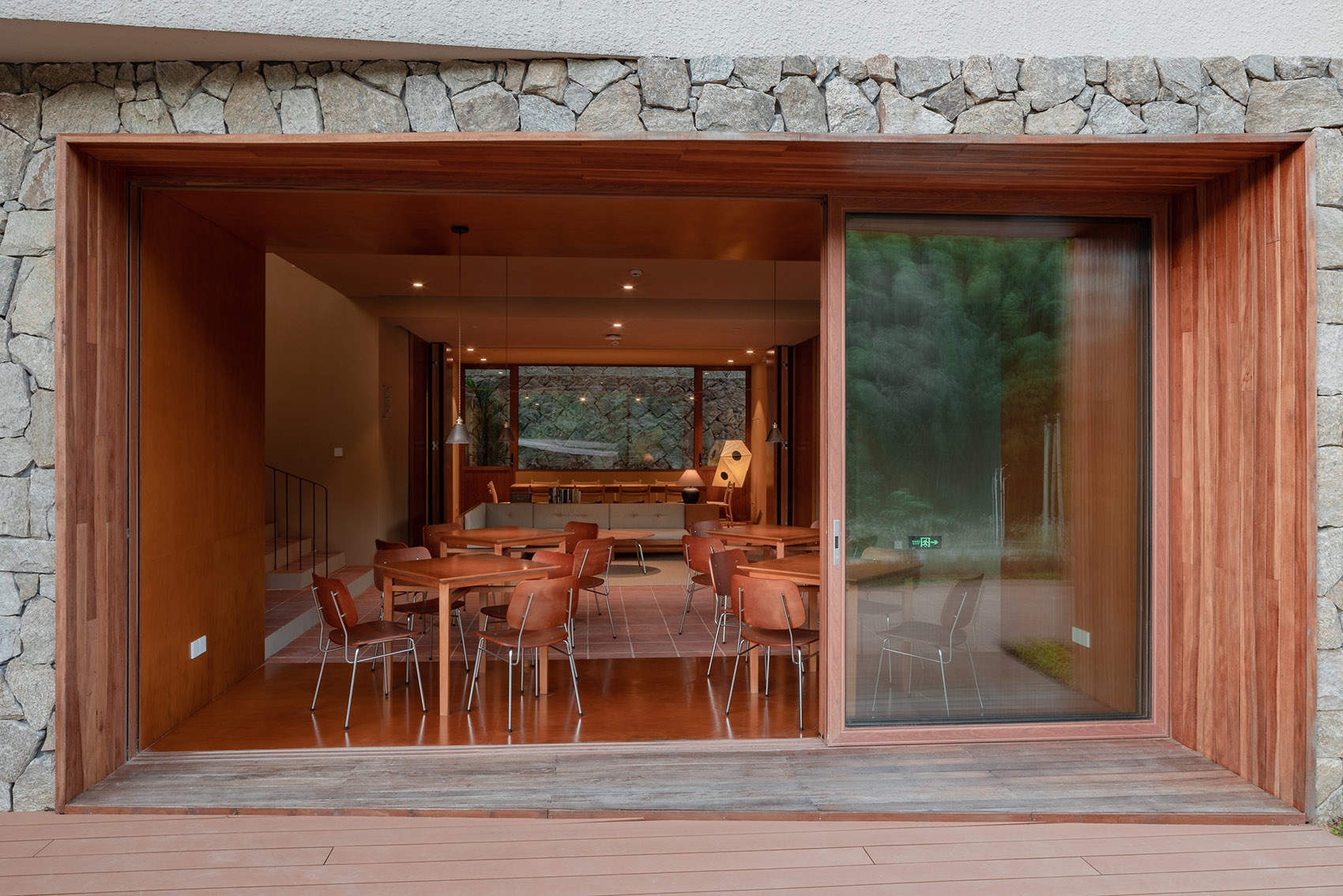

▼民宿入口旋转门，B&B entrance revolving door © 大川又

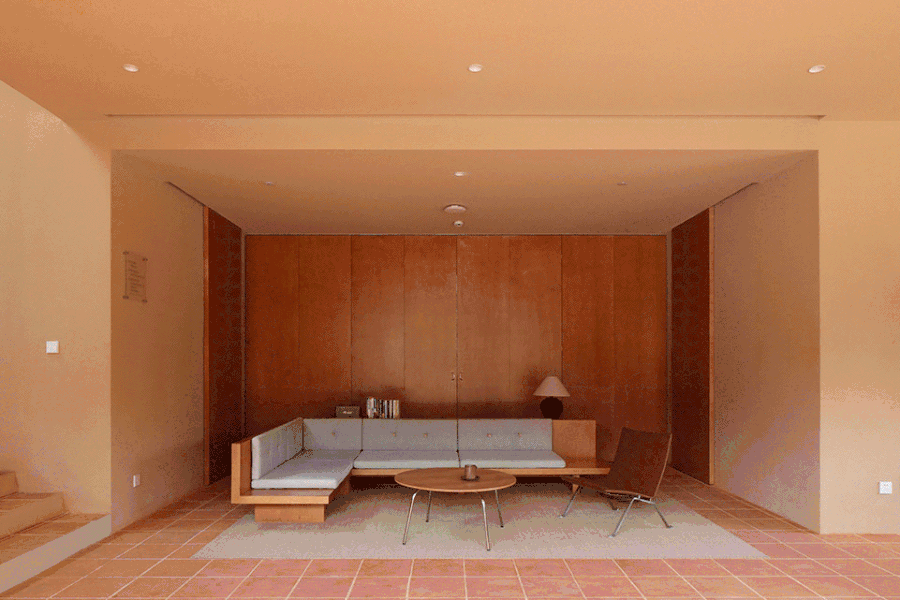

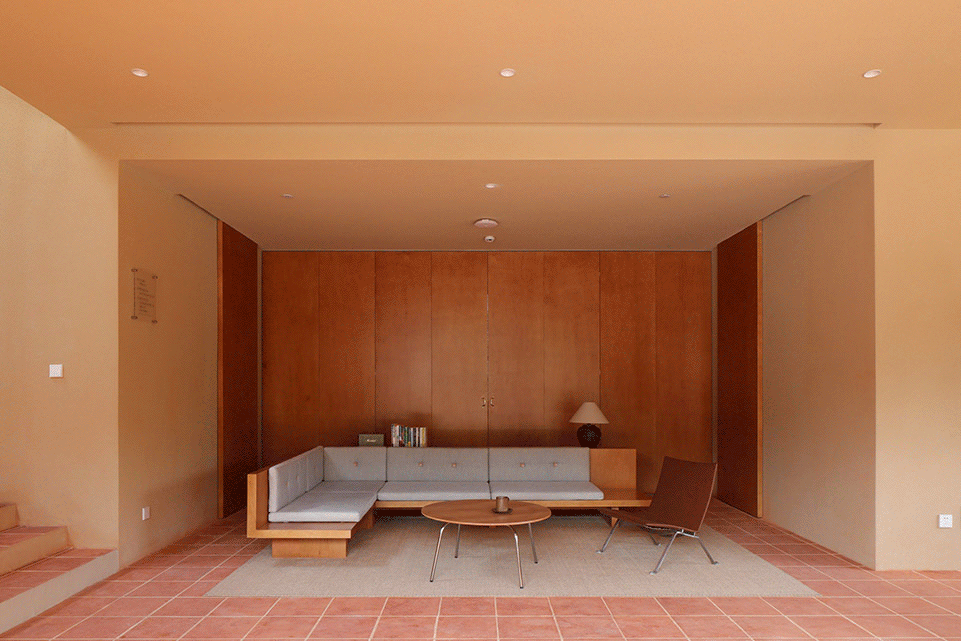

▼公区大堂，Lobby © 大川又

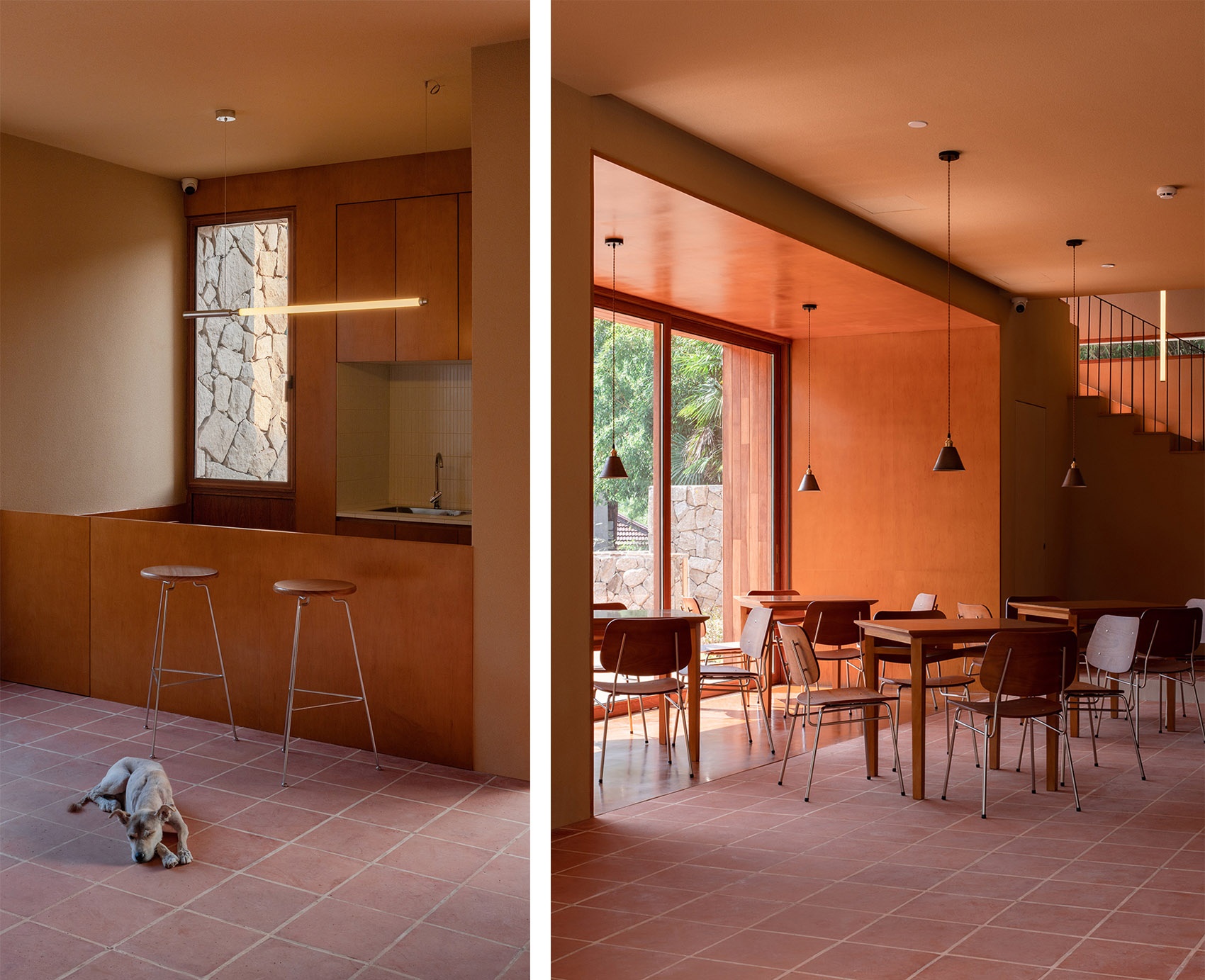

▼公区接待台 & 公区餐厅，Reception area & Restaurant © 大川又

▼公区客厅移动隔断，Movable partition in public area © 大川又

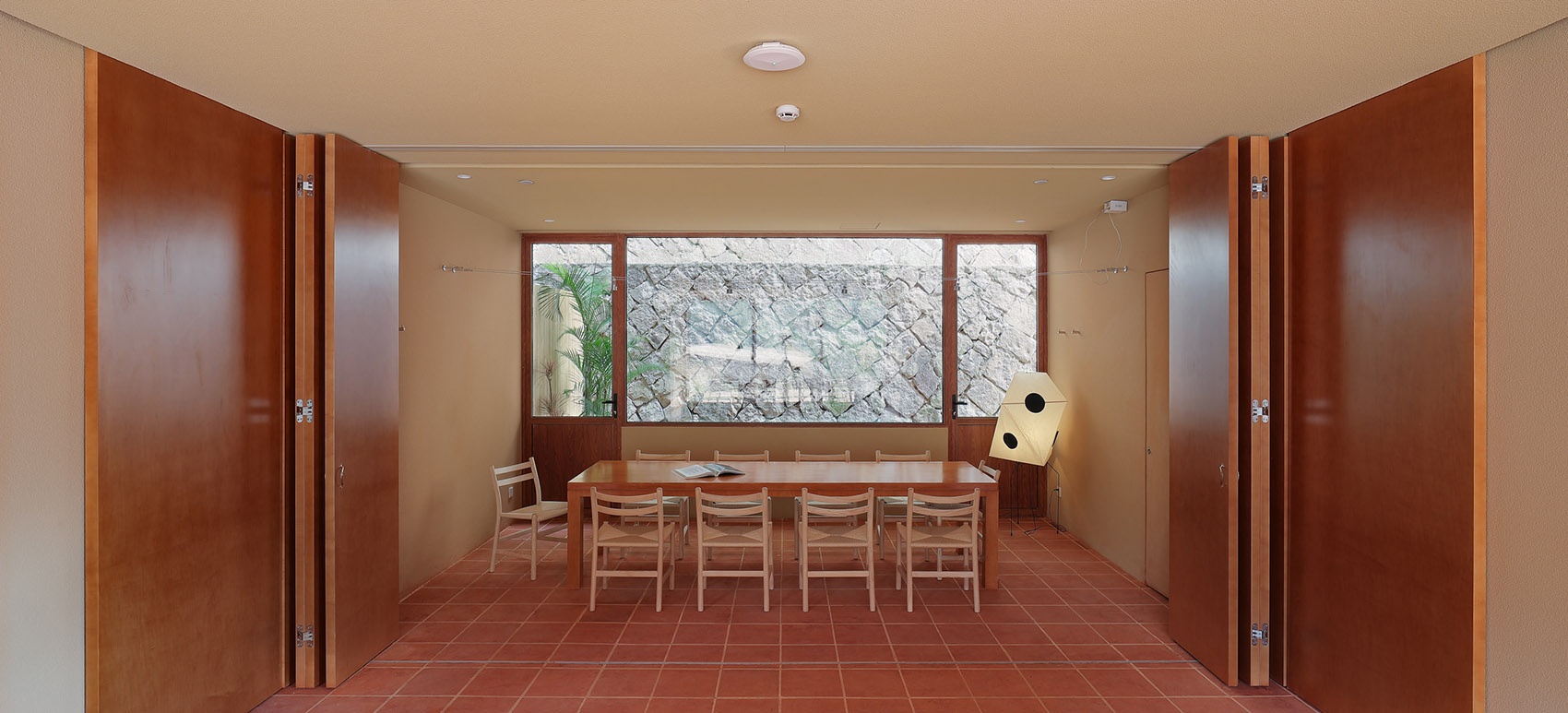

▼公区包厢，Private room in public area © 大川又

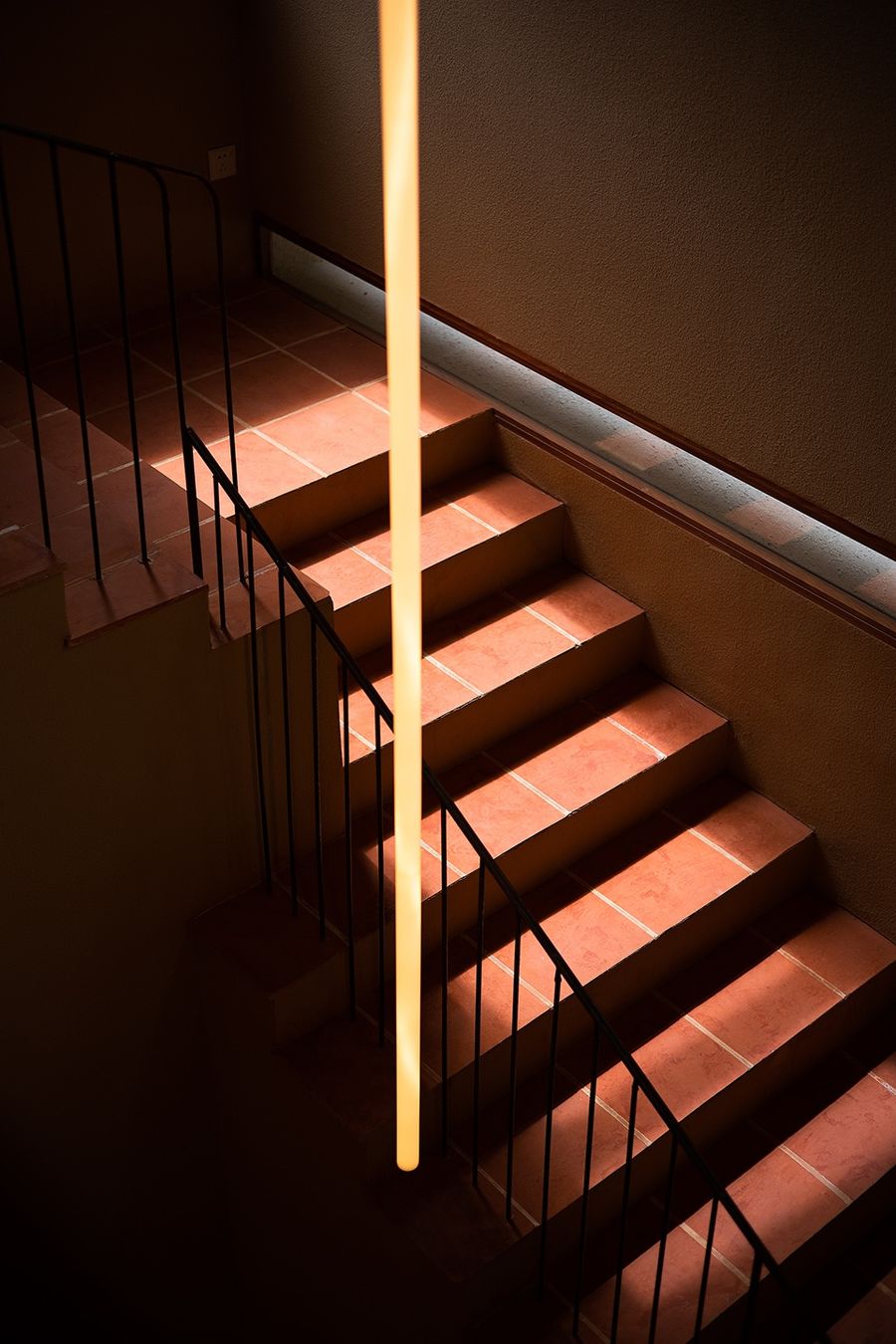

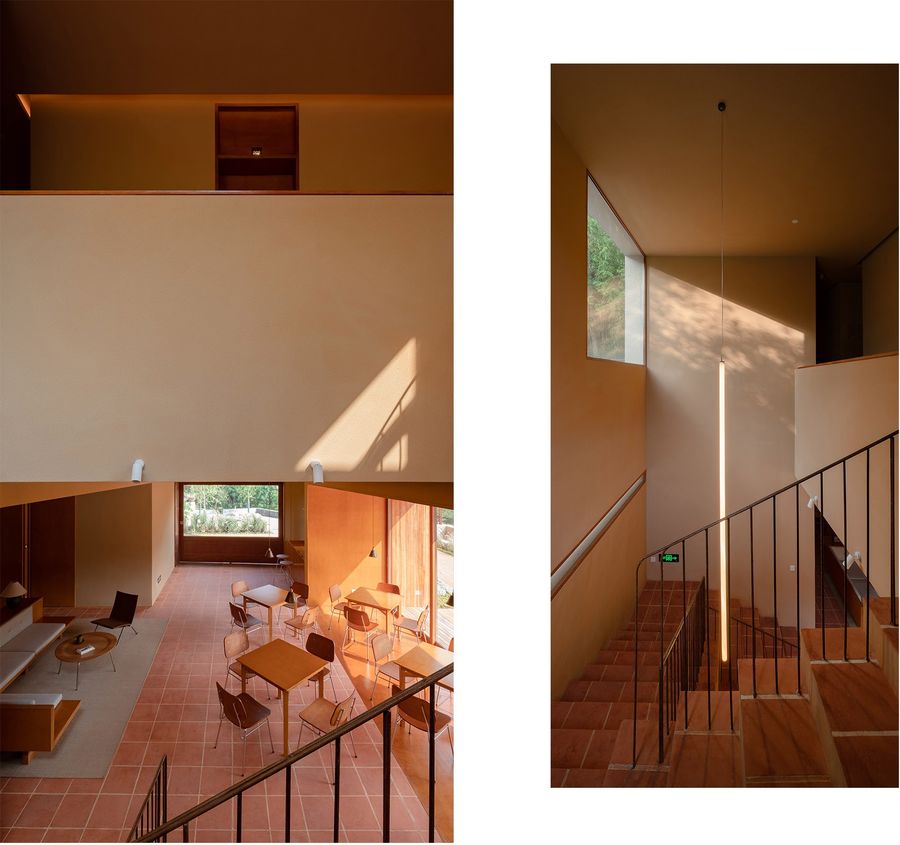

▼公区挑空楼梯，Empty staircase in the public area © 大川又

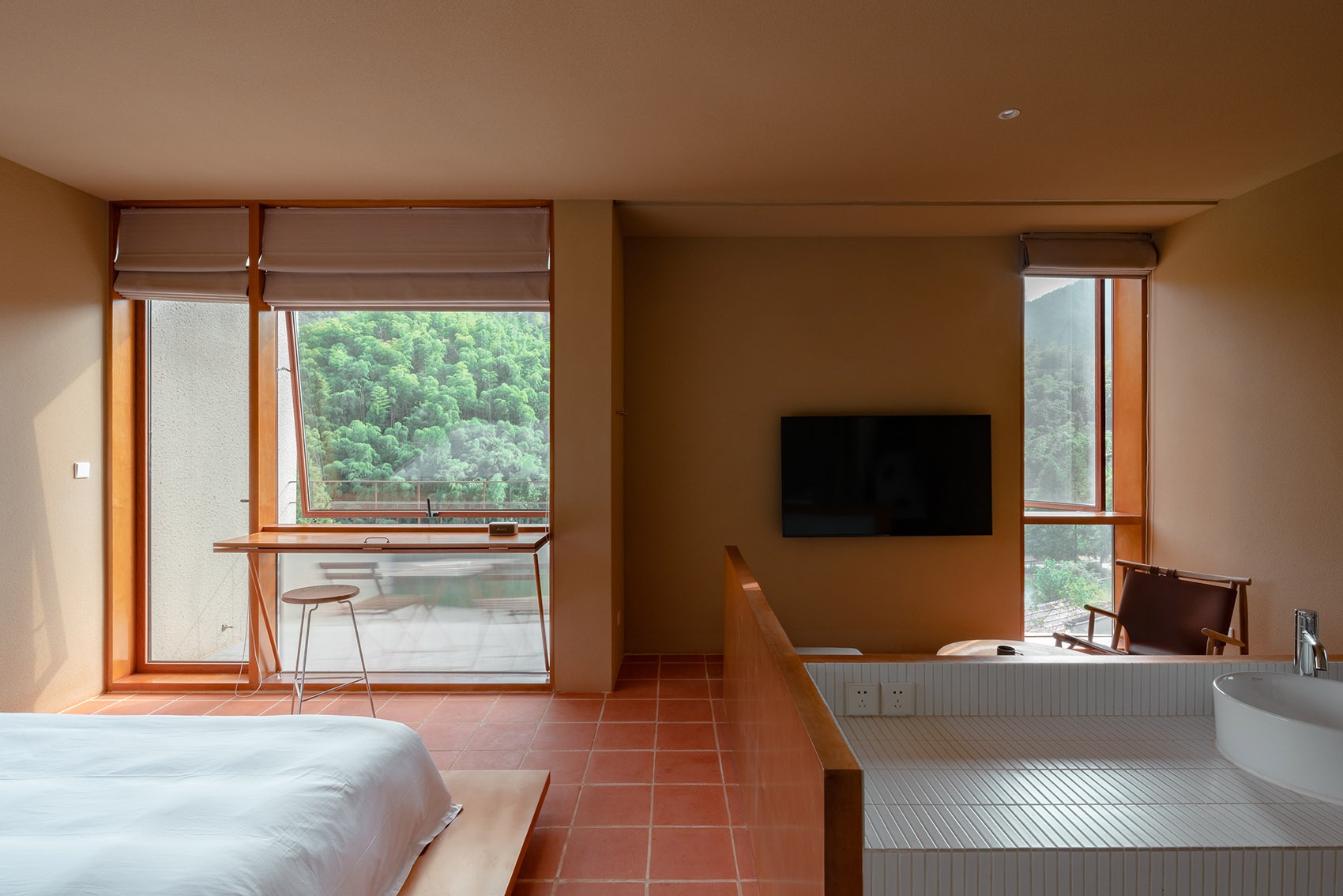

▼2楼南侧客房可变窗, Variable window in the first floor south side guest room © 大川又

▼房间门牌号 & 公区楼梯踏步，Door number & Stair treads in public areas © 大川又

通过增设可上翻的活动挑板，使窗户的功能具有多样性，挑板翻起时可作为吧台使用。

The function of the window is diversified by adding movable panels. It turns out to be a bar when the panels are turned up.

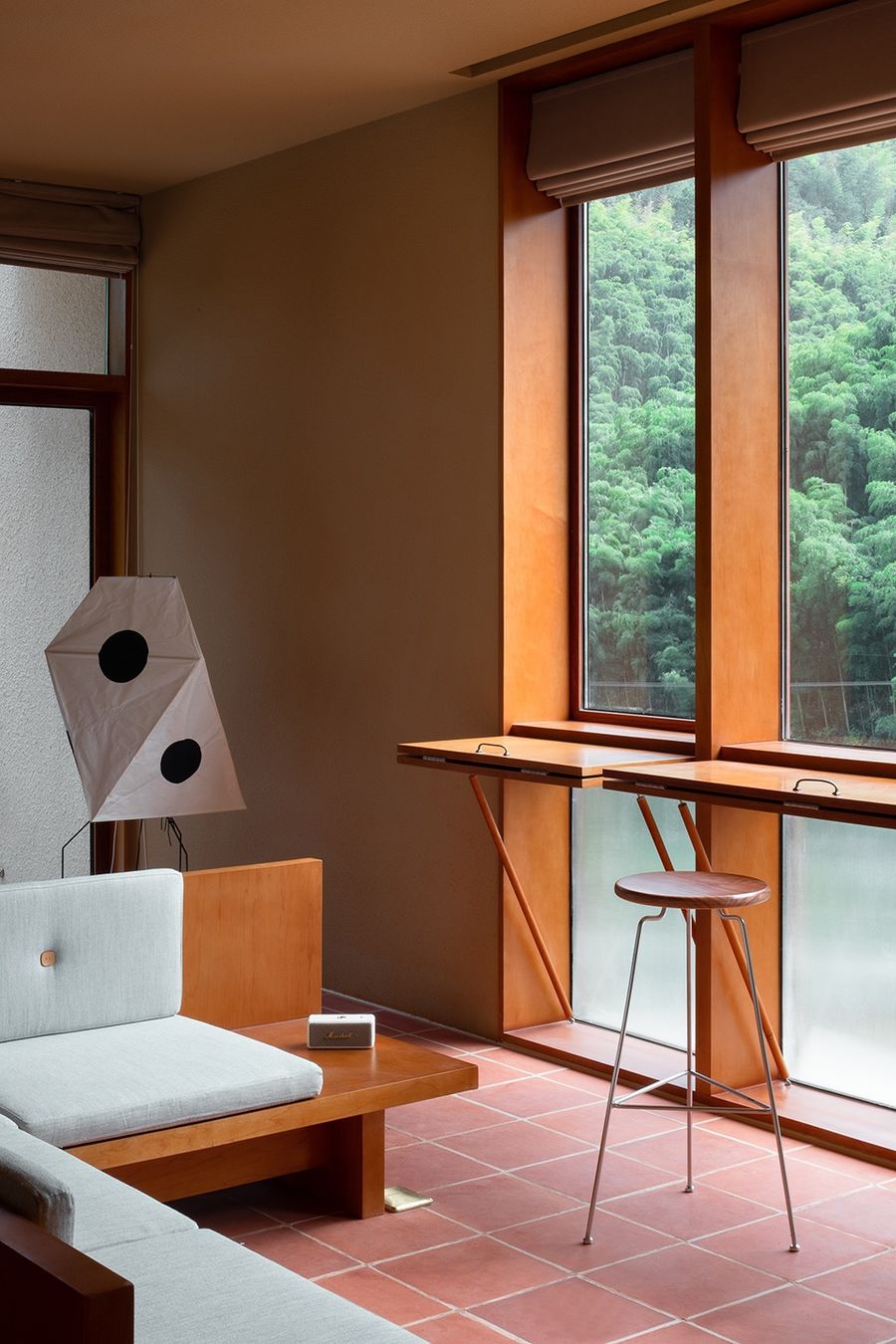

▼2楼南侧客房窗吧，Window bar in the first floor south side guest room © 大川又

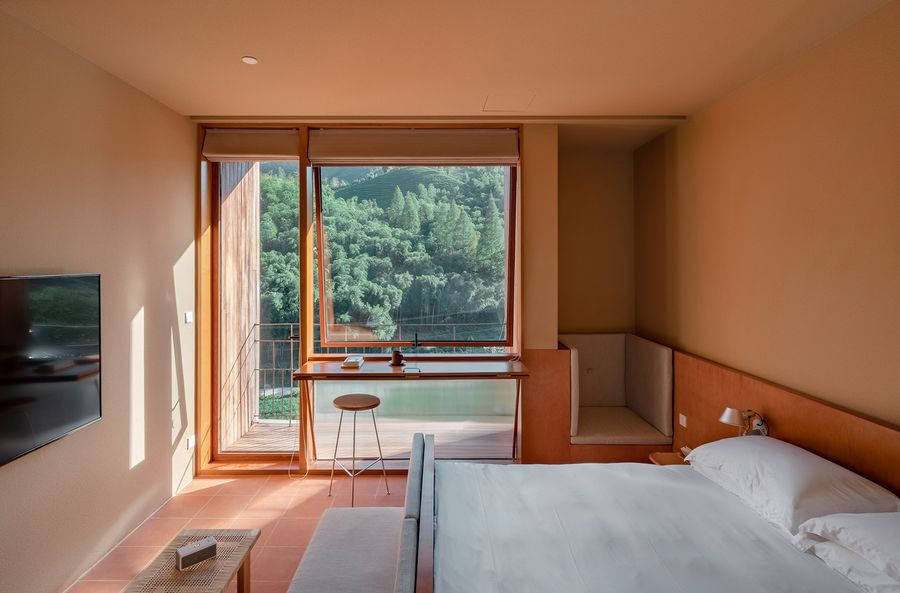

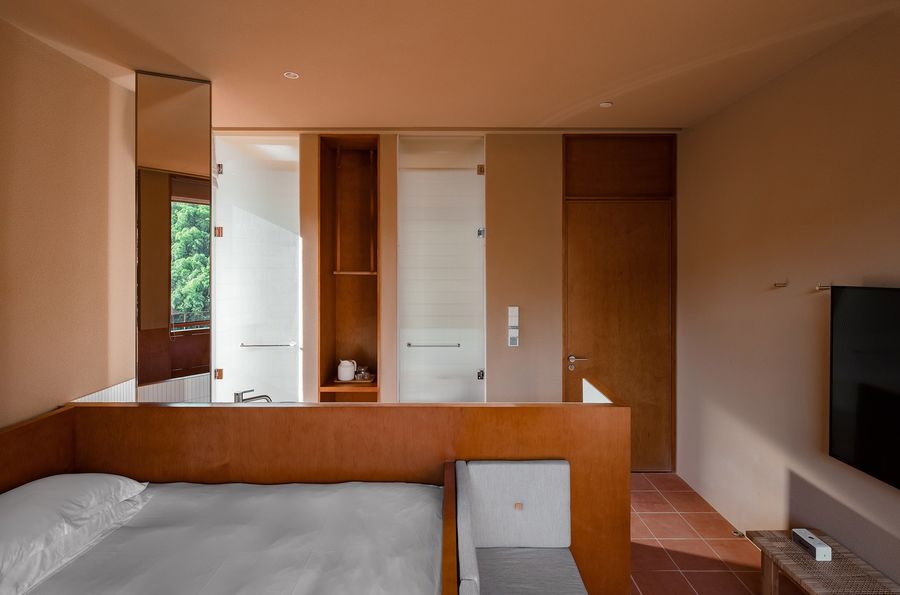

▼三楼东南侧客房，Second floor southeast guest room © 大川又

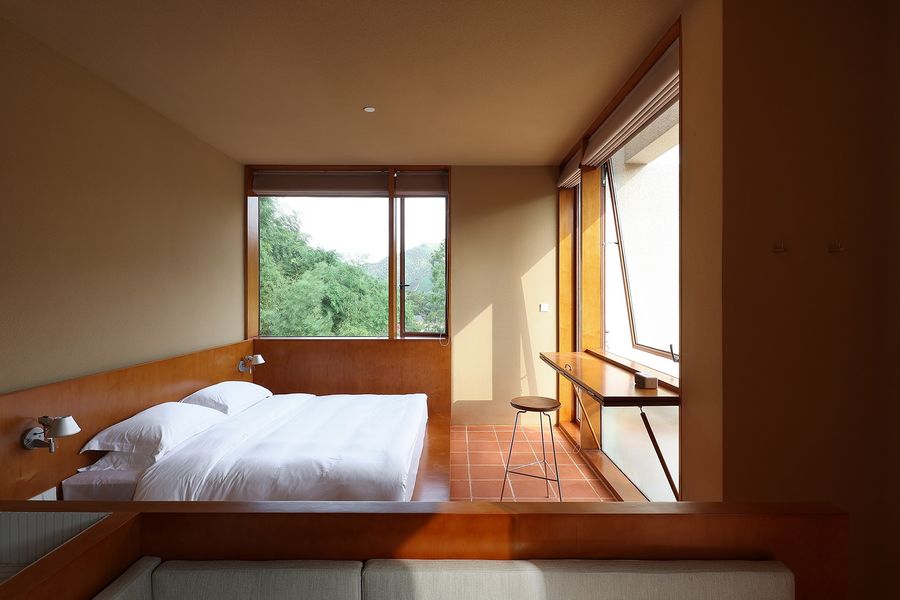

▼三楼西南侧客房，Second floor southwest guest room © 大川又

▼西北侧loft客房，Northwest loft room © 大川又

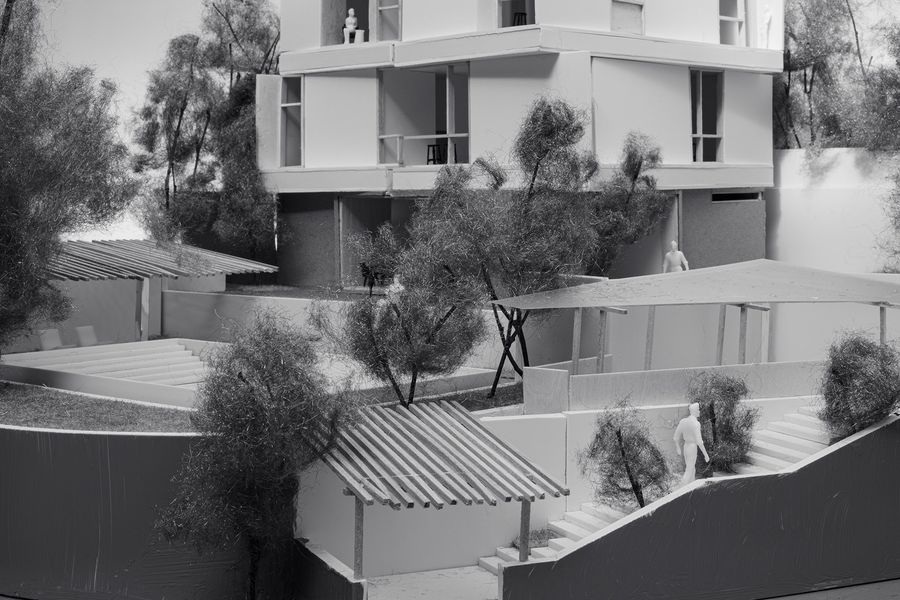

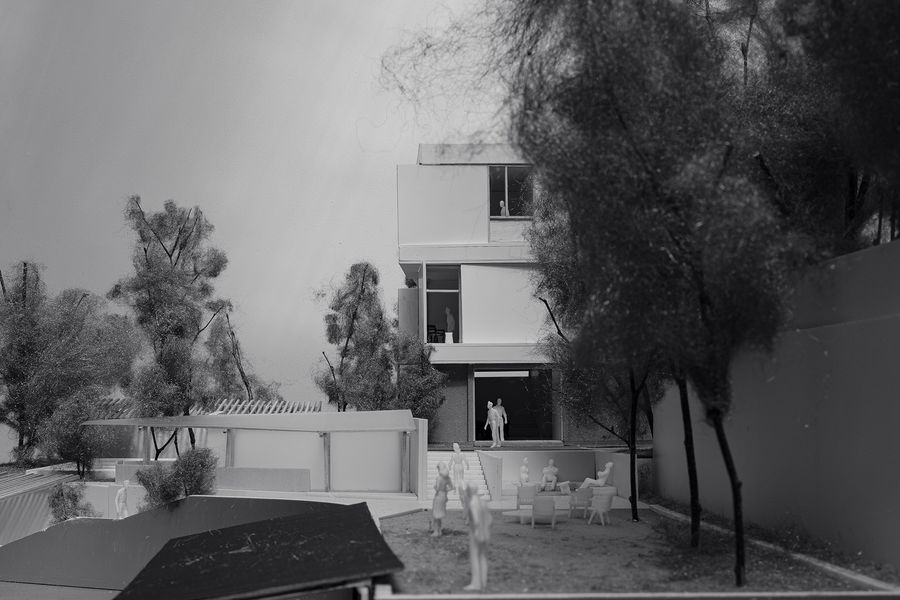

我们根据1:15的实体手工模型，调整了窗洞大小以及吊顶的斜度，从而确保阳光可以准确的射入室内。

We adjusted the size of the window openings and the slope of the ceiling according to the physical manual model of 1:15 to ensure that the sunlight can exactly enter the room.

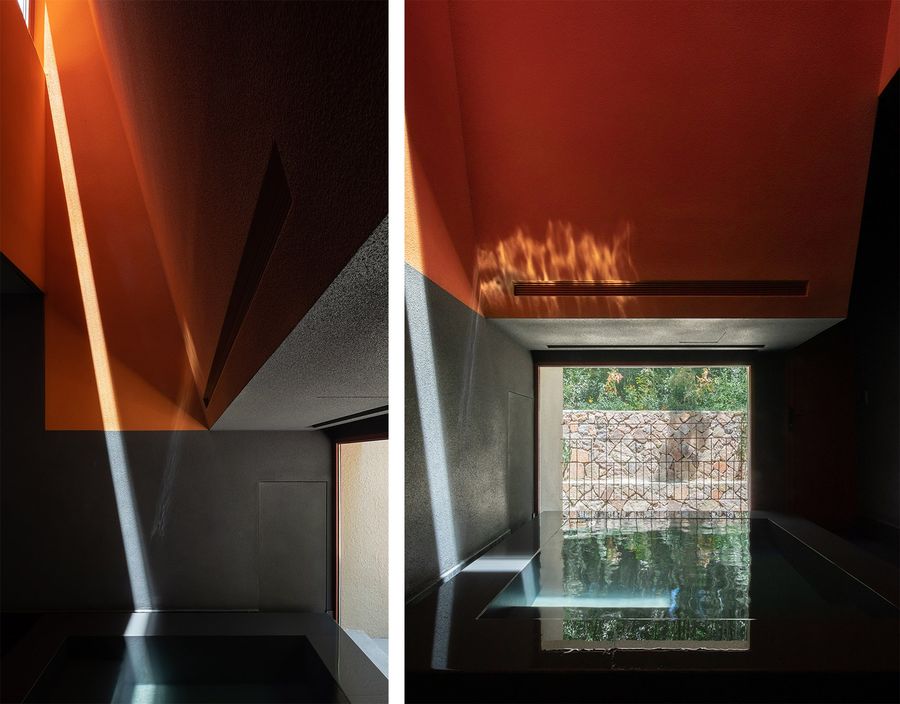

▼2楼北侧泡池，First floor north side hot spring © 大川又
